• Max Maischein

• Frankfurt am Main

• Frankfurt.pm

• DZ BANK, Information management

• Why Android?

• State of Perl on Android

• Triaging Perl errors/module errors

• Running Perl programs

• Interacting with Android

• Uses for Perl

• For non-mobile developers

• No App/Activity development

• Share media files

• No setup, just a device

• Otherwise responsible for all problems

• Sysadmin in foreign networks

• Device on - sharing active

• Device off - sharing inactive

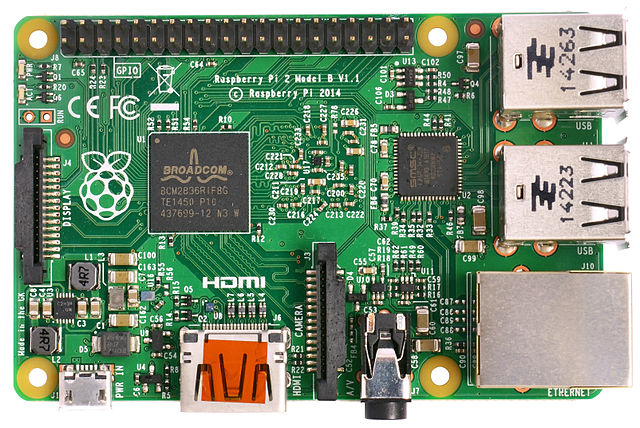

• Raspberry Pi - EUR 30

• Touchscreen - EUR 30

• Case - EUR 10

• Power supply, WLan, ...

• Soldering + glueing

• Sysadmin

• Device - EUR 130

• Touchscreen

• Case

• Battery

• Wlan, USB, Camera, Power supply, ...

• Sysadmin

"Android is just Linux, right?"

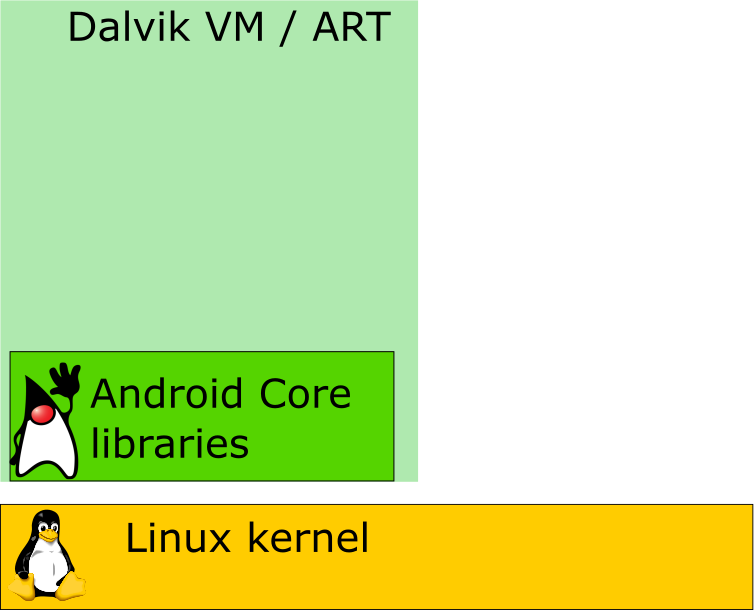

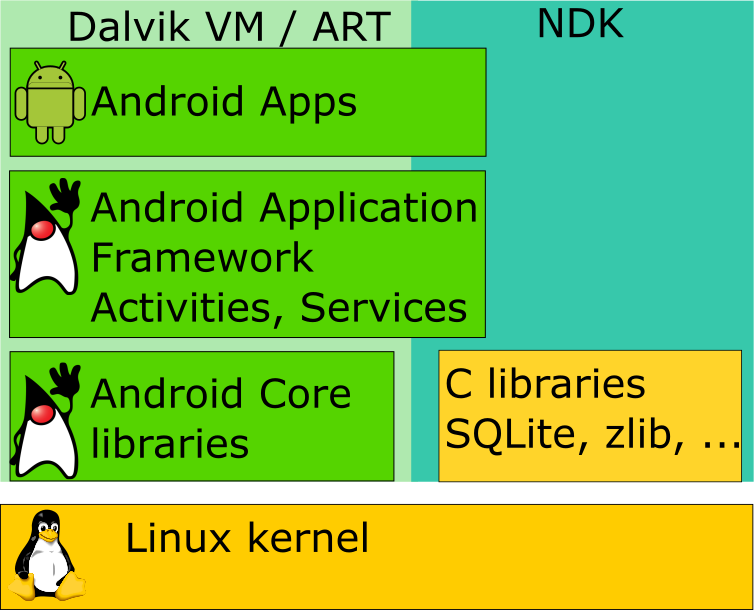

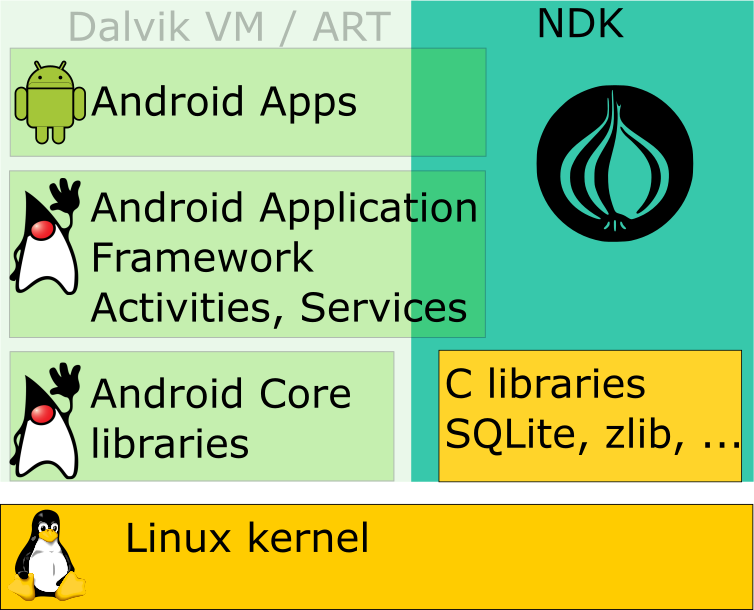

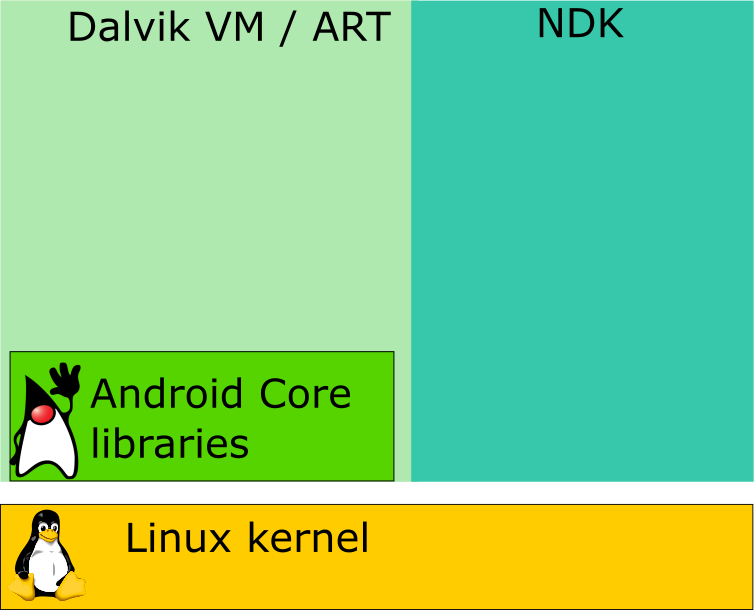

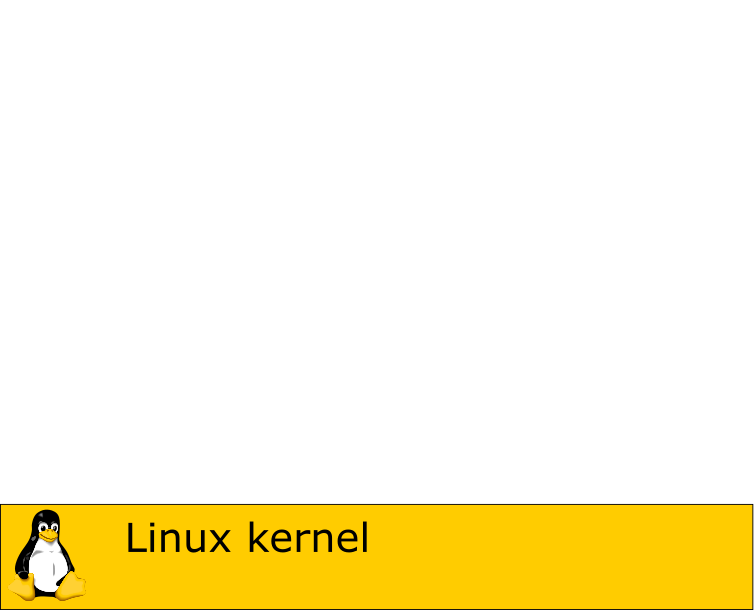

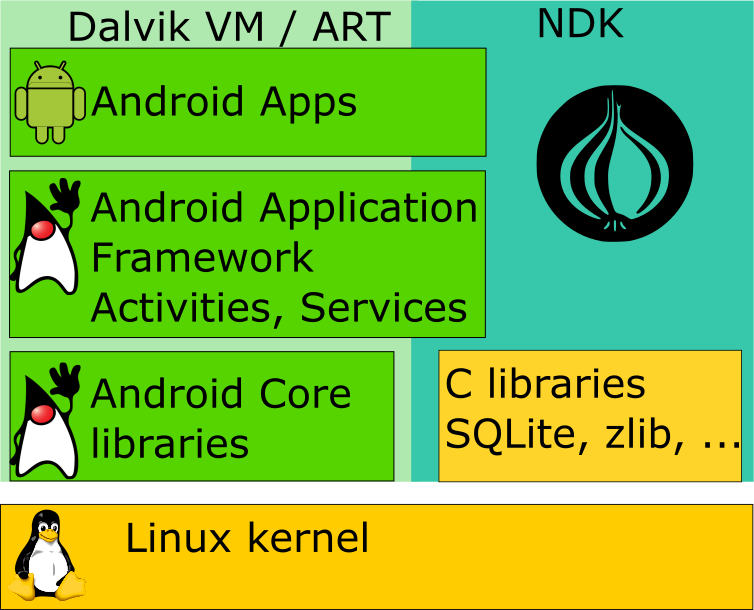

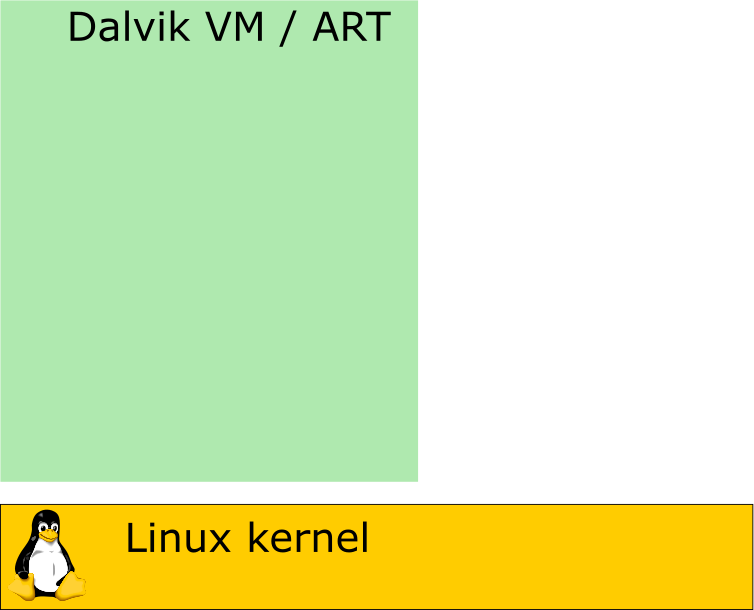

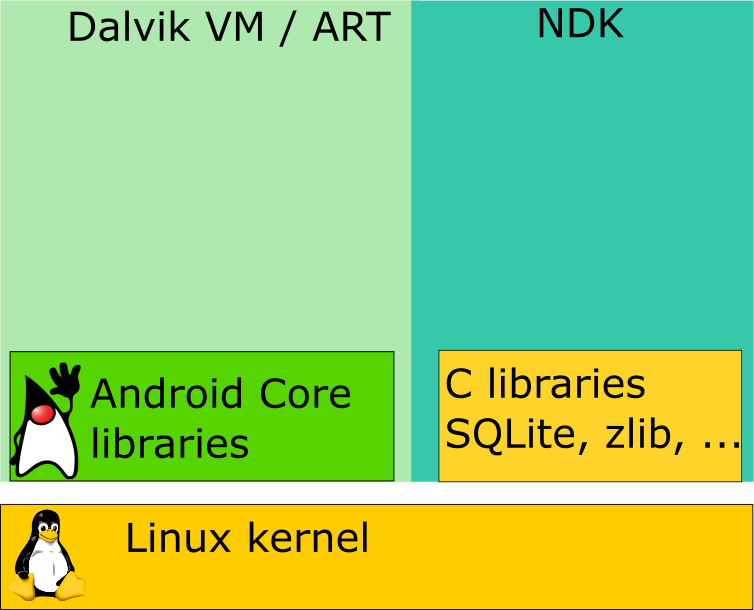

Android has 3 parts

Android has 3 parts

Android has 3 parts

Android has 3 parts

Android has 3 parts

Android has 3 parts

Android has 3 parts

Android has 3 parts

No JVM, no access to Android Core

• Native IDE on Android

• Vi

• git

• gcc

• Perl

• bash, wget, curl, ...

CCtools has Perl

•  1:  perl -v
   2:
   3:  This is Perl 5.18.2, ...

• Perl 5.22 is hopefully more current and works better.

• Compiling our own perl

 1:  sh ./Configure
 2:    -des
 3:    -Dusedevel
 4:    -Dprefix=/data/local/perl/
 5:    -Dsysroot=/data/data/com.pdaxrom.cctools/root/cctools
 6:    -Alibpth=/system/lib /vendor/lib
 7:    -Dman1dir=none
 8:    -Dman3dir=none
 9:    -Dsite1man=none
10:    -Dsite3man=none
11:    -Dvendorman1=none
12:    -Dvendorman3=none
13:    -DNO_LOCALE
14:
15:  make
16:  make test
17:  make install

• 50% bad test assumptions

• 50% environment/OS peculiarities

 1:  cpan/Time-Piece/t/02core ...................................... #   Failed test at t/02core.t line 62.
 2:  #          got: '3600'
 3:  #     expected: '-18000'
 4:  #   Failed test at t/02core.t line 63.
 5:  #          got: 'CET'
 6:  #     expected: 'EST'
 7:  # Looks like you failed 2 tests of 95.
 8:  FAILED at test 36

• t/io/ioxs.t
• mktemps() exists but always fails

• Netcraft^HGoogle confirms it

•  1:  cpanm --no-wget Mojolicious

• Sometimes fewer prerequisites is convenient

 1:  use Mojolicious::Lite;
 2:
 3:  get '/' => sub {
 4:      my( $c )= shift;
 5:      $c->render( text => 'Hello YAPC::Europe' );
 6:  }

Live Demo

http://192.168.43.1:3000/

http://192.168.43.1:3000/screen

• One Unix-User per app

• Data protection between apps

• root for access to all data

• DBI Installs without problems

• SQLite is installed on Android

•  1:  sqlite3 /data/data/com.google.android.keep/data.sqlite

• Querylet

• root :-(

 1:  #!perl -w
 2:  use strict;
 3:  use Querylet;
 4:  use Querylet::Output::Text;
 5:
 6:  database: dbi:SQLite:dbname=/data/data/com.google.android.keep/data/keep.db

 1:  query:
 2:      select
 3:        title
 4:      , text
 5:      from      tree_entity note
 6:      left join list_item   list on
 7:          (note._id = list.list_parent_id and note.account_id=list.account_id)
 8:      where note._id= 143
 9:      order by list.order_in_parent desc
10:
11:  output format: text

 1:  # perl5.21.11 02-dump-keep.pl

 1:  # perl5.21.11 02-dump-keep.pl
 2:
 3:  title           text
 4:  Perl on Android Abgrenzung/Erwartungsmanagement
 5:  Perl on Android Historische Einordnung v. PoA: SL4A,native
 6:  Perl on Android Java vs native
 7:  Perl on Android dalvik vs Java -> ART

• Launch Activities

• Send input

• Read input

• Read screen

• Without JNI

• open() / Read the right devices

• system() / launch the right programs

• Launch Activity

   1:  system( "am start 'http://act.yapc.eu/ye2015'" );
   2:
   3:  Android::launch_activity('http://act.yapc.eu/ye2015')

• APK Builder

• Google Play Store Account

• Size reduction (App::staticperl)

• Native UI instead of webserver

• Download tarball

• Copy files

All sample code is on Github at

https://github.com/corion/perl-android

Questions?

Questions?

corion@cpan.org

Slides available at

http://corion.net/talks/

Tarball on

http://corion.net/perl-android/index.html

https://github.com/corion/perl-android on Github

Clicks / taps

 1:  Android::send_input_event(
 2:      command => 'tap',
 3:      args => [$x, $y],
 4:  );

Text

 1:  Android::send_input_event(
 2:      command => 'text',
 3:      args => ['Hello Perl'],
 4:  );

 1:  my $fh= Android::input_event_fh();
 2:  while( my $line = <$fh> ) {
 3:      my $ev= Android::decode_input_event( $line );
 4:      if( $ev ) {
 5:          print join("\t", $ev->{type}, $ev->{subtype}, $ev->{value}), "\n";
 6:      };
 7:  };

Screenshot

 1:  Android::screenshot('/sdcard/image.png');

 1:  Android::vibrate(100);

• perlandroid.pod

• cctools

• perlport.pod

Own mtpServer/mtpDevice

Android has Fuse built-in

CPAN via http as FUSE Plugin - minicpan-on-usb

fuse-android+Fuse.pm

 1:  libfuse-lite / ntfs-3g
